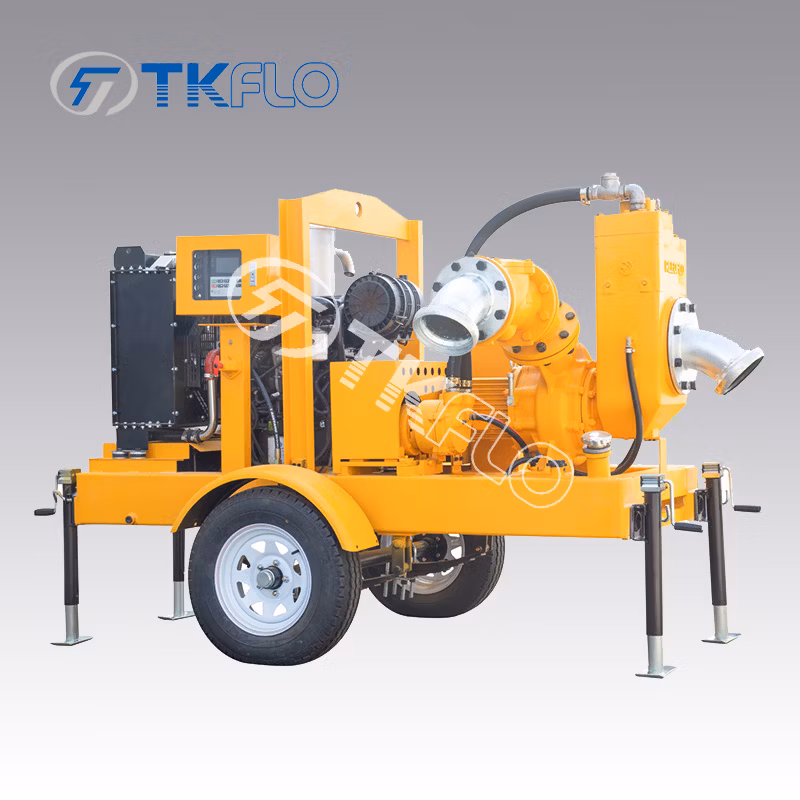

Product Description
| Diameter | DN25-400 mm |
| Capacity | 15-2500 m3/h |
| Head | up to 100m |
| Liquid Temperature | up to 70 ºC |
Specification/performance data
| SPDW-80 | SPDW-100 | SPDW-150 | SPDW-200 | SPDW-250 | SPDW-300 | SPDW-400 | |
Engine Power /Speed-KW/rpm | 11/2900 | 24/1800(1500) | 36/1800(1500) | 60/1800(1500) | 110/1800(1500) | 163/1800(1500) | 330/1800(1500) |
Dimensions L x W x H (cm) | 170 x 119 x 110 | 194 x 145 x 15 | 220 x 150 x 164 | 243 x 157 x 18 | 263x160x170 | 310X1750X180 | 355X180X190 |
| olids Handling - mm | 40 | 44 | 48 | 52 | 58 | 65 | 75 |
| Max Head/Max Flow - m/M3/h | 40/130 | 45/180 | 44/400 | 65/600 | 56/900 | 54/1200 | 76/2500 |
1. Suction head reach to 9.5 m √
Vertical suction lift in under 1 minute even on "snore"
2.Quick start and restart √
No need feeding water before start, first start is the same way.
Reduce the site work
3. Long use time-Heavy duty internal pump bearings √
4. Pass the solid particles up to 75 mm √
sensible choice under various working condition. Due to pass the large diameter solid particles, so this SPH pumps are suitable for deep.
5.High capacity air handing can be qualified for Well point dewatering engineering. √
6. Move the work site at any time for we have double wheels and single wheel design. √
7. By controlled floating gas water separation system to ensure that the suction-extended priming efficiency- rapid on-site change in minutes ( mechanical seal option.)
8. Built-in fuel tank for longer running √ ( Additional fuel tank available optional )
9. Auto matic startup control panel.
10. Super size inspection hole cover to facility clean.
11. Dry running ability. √
12. Air separtor tank easy for service, stainless steel material is optional.
13. Long ruuning time with minimal service intervention. √
14 . Flange standard: GB, HG, DIN, ANSI standard, according to your requirements. √
15. A variety of material to choose √
Cast iron/ stainless steel/ steel/ Ductile iron/ Duplex stainless steel
Shaft seal: mechanical seal / packing seal
* subject to geology, fluid density, losses
PUMP APPLICANT
MultI-purpose solution:
• Standard sump pumping
• Slurry & semi solid material
• Well pointing - high vacuum pump capacity
• Dry running applications
• 24 hour reliability
• Designed for high ambient environments
Market Sectors:
• Building & Construction - well pointing and sump pumping
• Water & Waste - over pumping and systems bypass
• Quarries & Mines - sump pumping
• Emergency Water Control - sump pumping
• Docks, Ports & Harbors - sump pumping and stabilization of loads

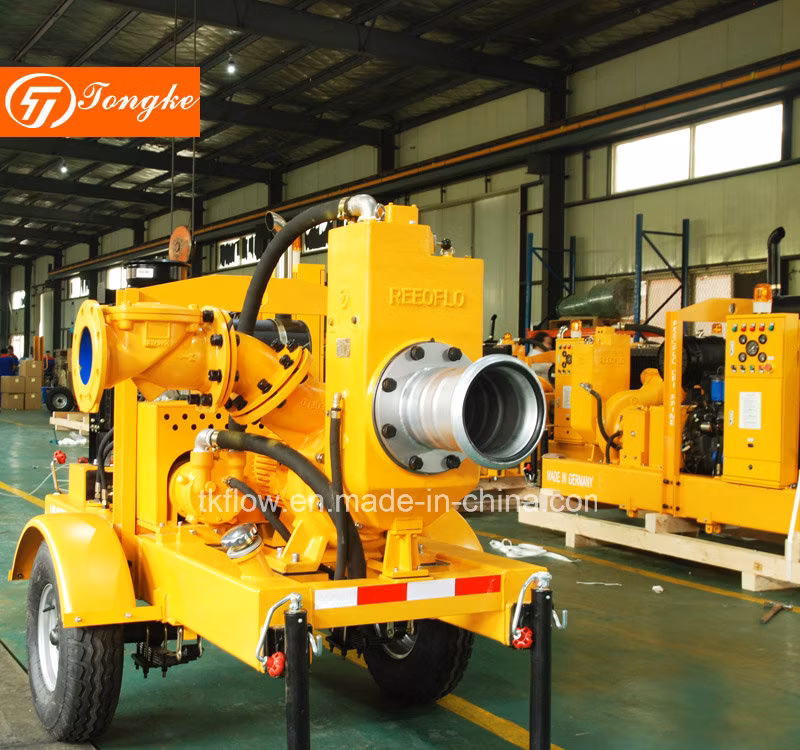

Detailed Photos
